- Single wire Cu-ETP according to UNI EN 13602 – Ø 0,20 mm (special wire on request)
- Bare or tinned copper braid
- Contact surfaces made of bare or tinned copper
- Standard cross-sections from 6 mm² to 75 mm²
- Customised solutions available on request
- Current carrying capacity according to IEC 439
| Type | Cross-section [mm2] |
Single wire [Ø mm] |

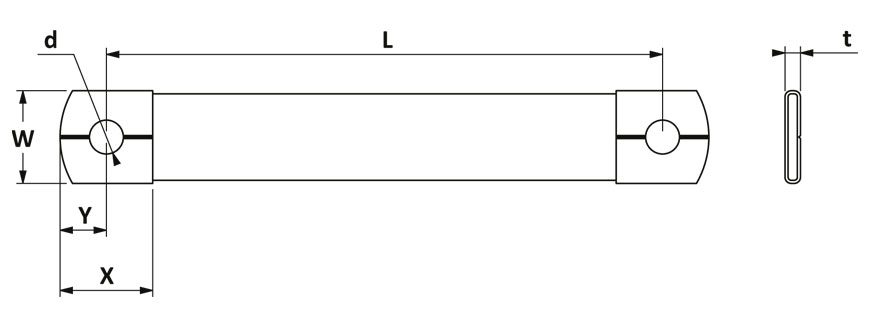

L [mm] | W [mm] | X [mm] | Y [mm] | d Ø [mm] | t [mm] | Order no. |
|---|---|---|---|---|---|---|---|---|---|

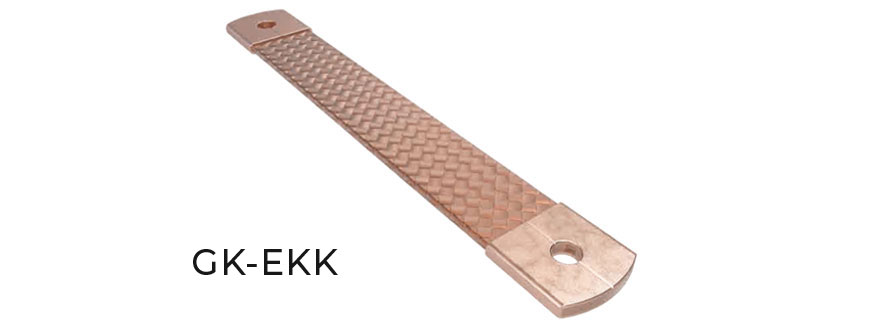

| GK-EKK | 16 | 0,2 | 150 | 17 | 23 | 13 | 9 | 2,5 | GK-EKK 16-17/150-9 |

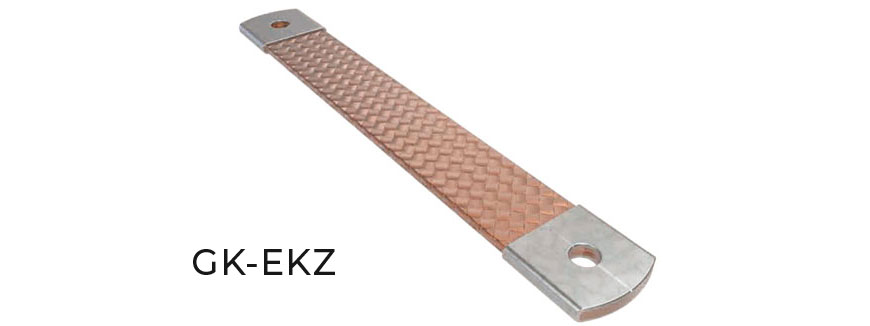

| GK-EKZ | 25 | 0,2 | 300 | 23 | 23 | 13,5 | 9 | 3,2 | GK-EKZ 25-23/300-9 |

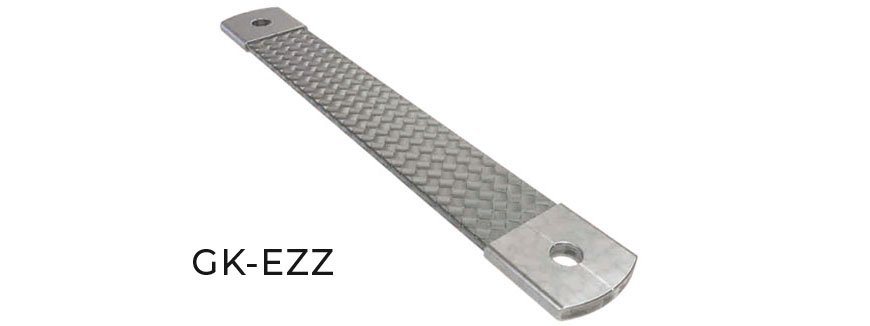

| GK-EZZ | 50 | 0,2 | 550 | 30 | 30 | 15 | 11 | 4,5 | GK-EZZ 50-30/550-11 |
