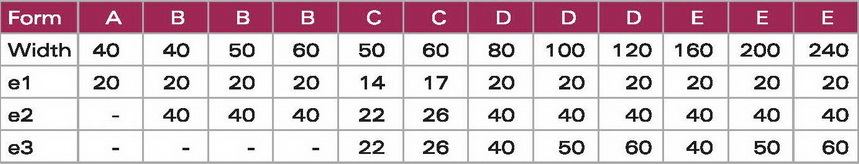

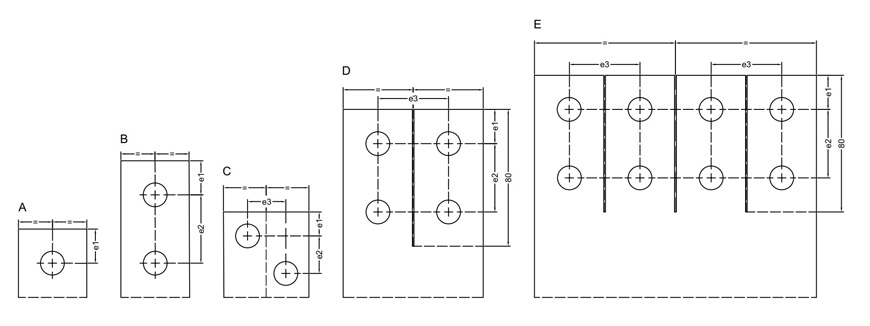

Hole patterns for connections between expansion strips and busbars (see DIN 46 206 or 43 673).
- All drillings D=14mm.
The holes in the expansion strips are suitable for longitudinal, angular or T-joints; on request with slits of appropriate thickness.
Our products use as links between switches, transformers, high current components and their inflexible barring.
In contrast to inflexible connectors of mechanical changes arising from switch gear operations, vibration or from expansion caused by current heat.
There are various manufacturing technologies available for each mode of application. In this respect please pay attention to our recommendations for Choice of Types:

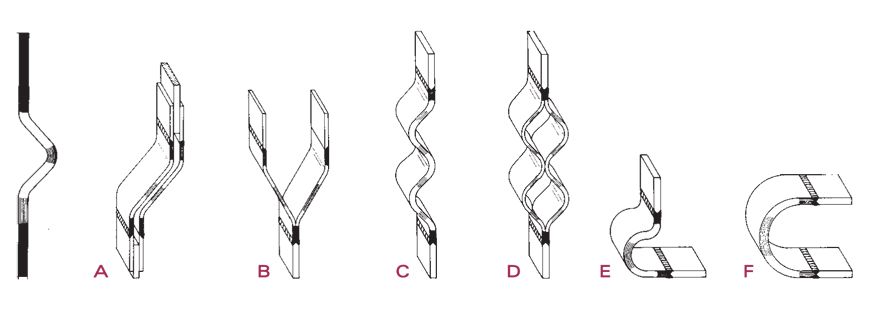

Press-Welded Copper Expansion Connectors
High elasticity, good conductivity, optional thickness, DIN form
Press-Riveted Copper Expansion Connectors
For extremely high motion frequencies
Inert-Gas-Welded Copper Expansion Connectors
Good conductivity, facultative form of terminal ends
Inert-Gas-Welded Aluminum Expansion Connectors
For aluminum connections
High-Flexible Copper Braids
High Mobility, special applications
As surface coating of the contact areas:
If the conducting material is copper,
we recommend TINNING or SILVER coating
If the conducting material is aluminum,
we recommend NICKEL or SILVER coating.
