DIN 46 276 – Series GKKP

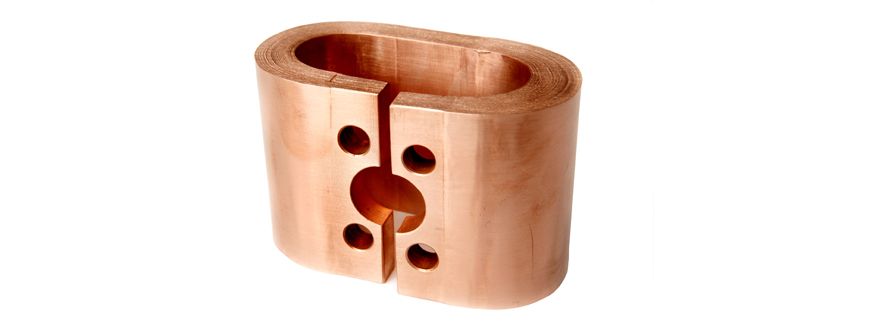

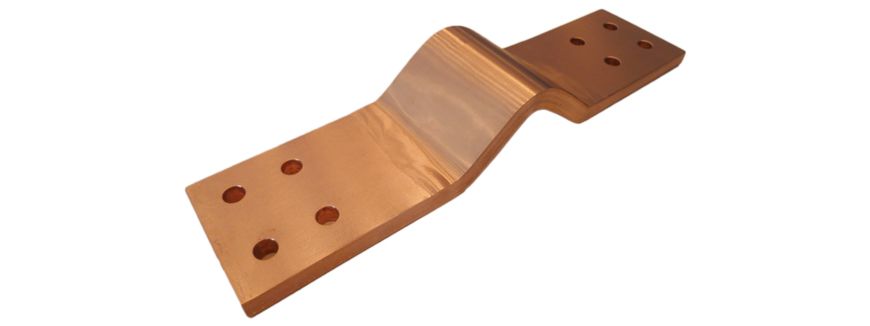

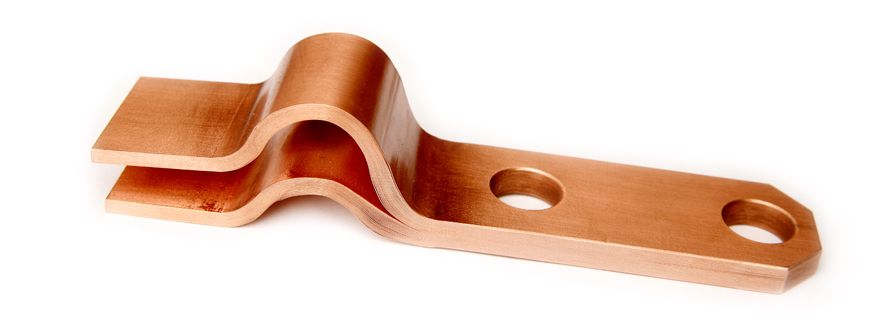

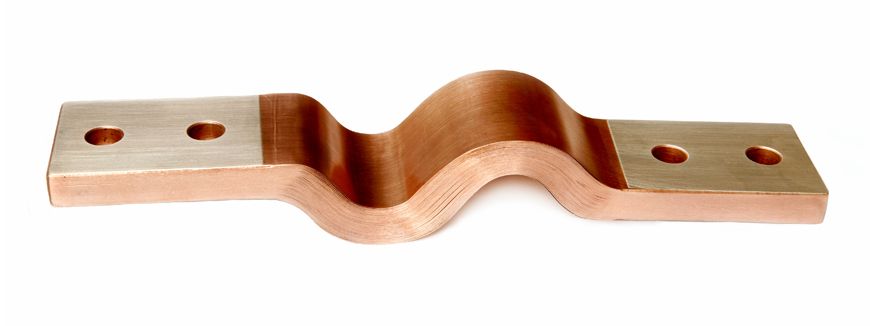

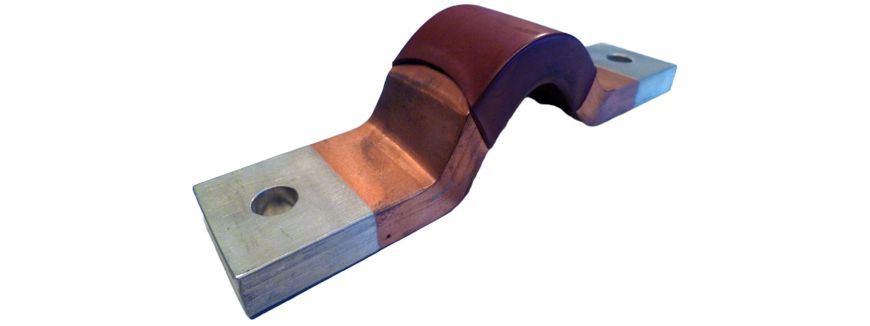

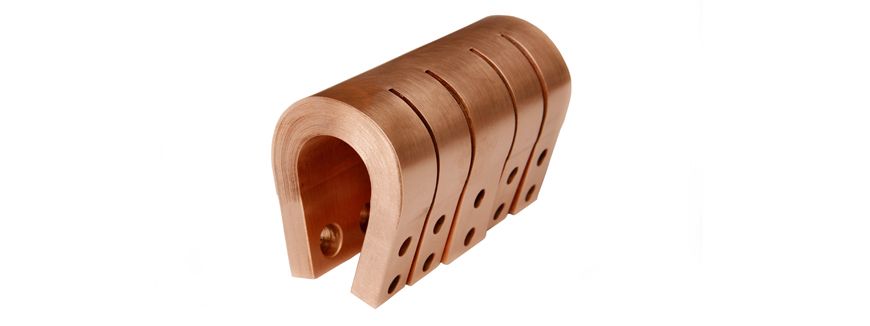

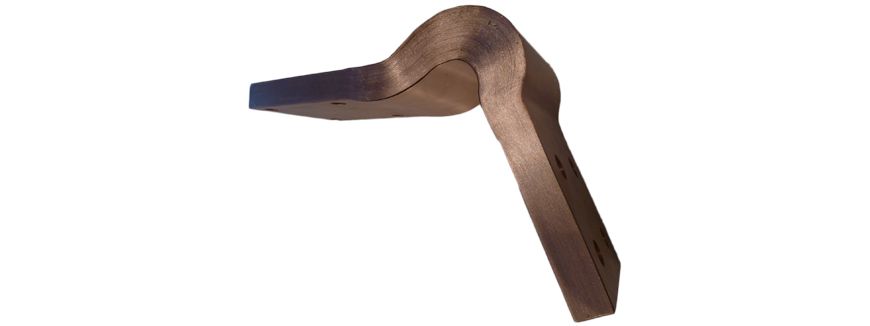

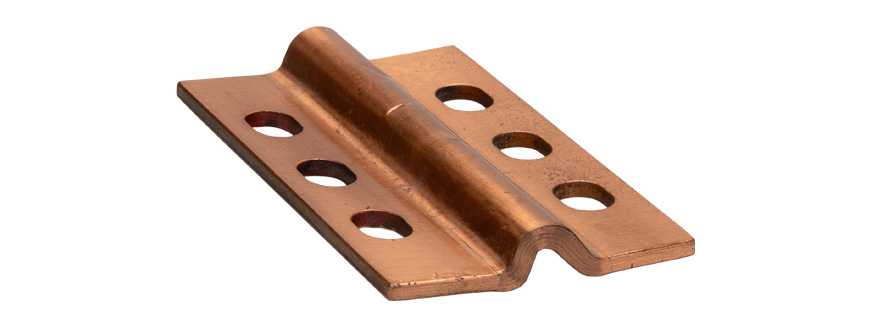

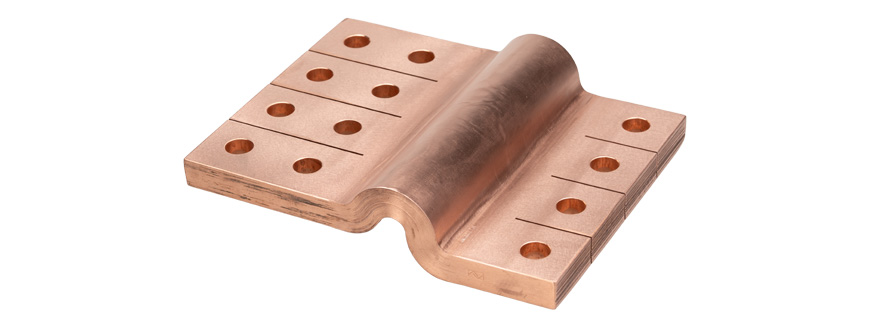

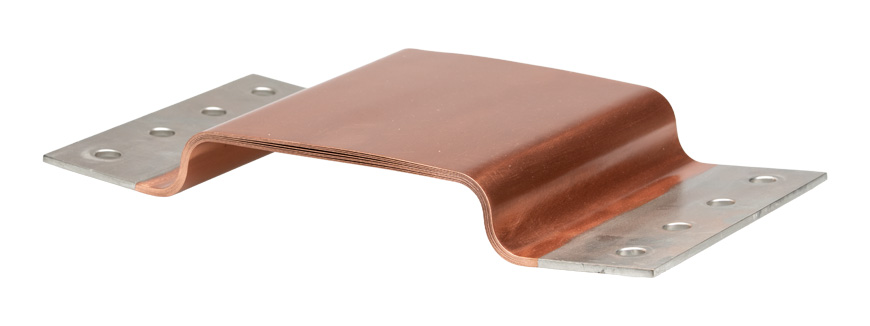

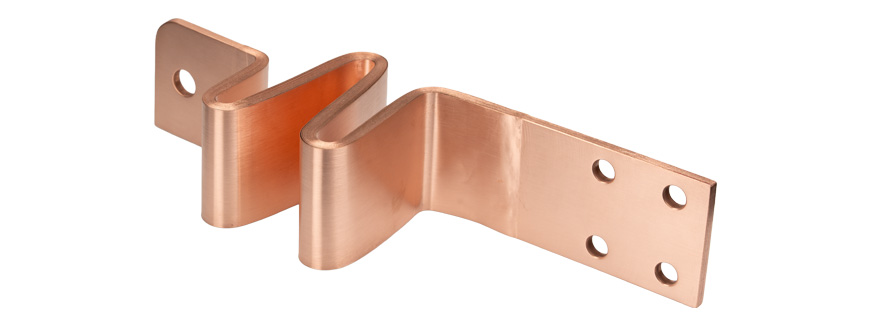

Design
The expansion connectors are made entirely of copper foils. The contact ends, the copper foils are welded under pressure and heat to produce a compact and massive copper block.
Material
The copper foils made of Cu-HCP, 0,1 to 0,3mm thick.
Drillings
Upon request drillings would be according to DIN 43 673 or according to customer specification.

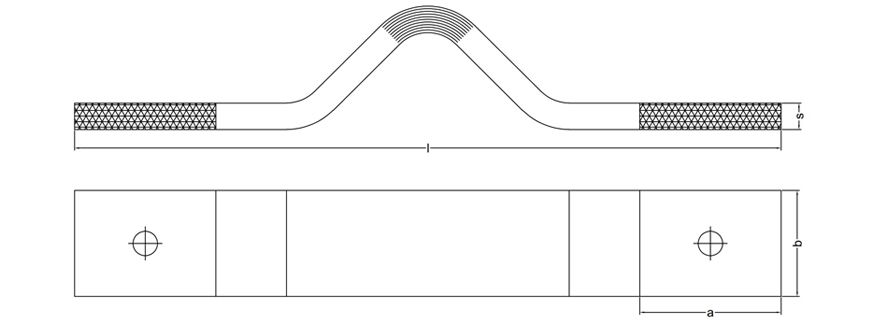

Type GKKP - Ordering examples for frequent dimensions
| Order no. | b [mm] | a [mm] | s [mm] | l [mm] | Weight [kg] |
|---|---|---|---|---|---|
| GKKP 38/5-230 | 38 | 40 | 5 | 230 | ca. 0,4 |
| GKKP 38/10-230 | 38 | 40 | 10 | 230 | ca. 0,9 |
| GKKP 48/5-280 | 48 | 50 | 5 | 280 | ca. 0,7 |
| GKKP 48/5-300 | 48 | 80 | 5 | 300 | ca. 0,7 |
| GKKP 48/10-280 | 48 | 50 | 10 | 280 | ca. 1,3 |
| GKKP 48/10-300 | 48 | 80 | 10 | 300 | ca. 1,4 |
| GKKP 58/5-280 | 58 | 60 | 5 | 280 | ca. 0,8 |
| GKKP 58/5-300 | 58 | 80 | 5 | 300 | ca. 0,9 |
| GKKP 58/10-280 | 58 | 60 | 10 | 280 | ca. 1,6 |
| GKKP 58/10-300 | 58 | 80 | 10 | 300 | ca. 1,7 |
| GKKP 78/10-300 | 78 | 80 | 10 | 300 | ca. 2,3 |
| GKKP 78/15-280 | 78 | 80 | 15 | 280 | ca. 3,2 |
| GKKP 78/15-300 | 78 | 80 | 15 | 300 | ca. 3,4 |
| GKKP 98/10-320 | 98 | 80 | 10 | 320 | ca. 3,1 |
| GKKP 98/15-320 | 98 | 80 | 15 | 320 | ca. 4,6 |
| GKKP 98/20-320 | 98 | 80 | 20 | 320 | ca. 6,1 |
| GKKP 118/20-320 | 118 | 80 | 20 | 320 | ca. 7,5 |
