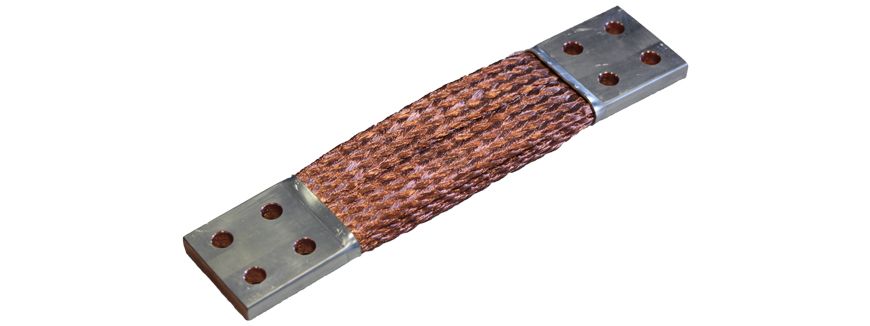

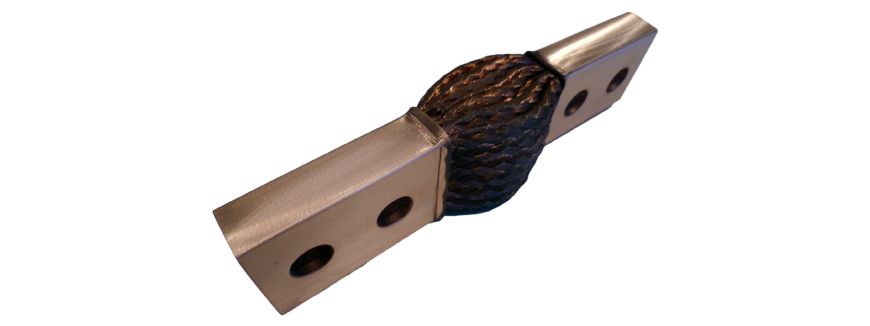

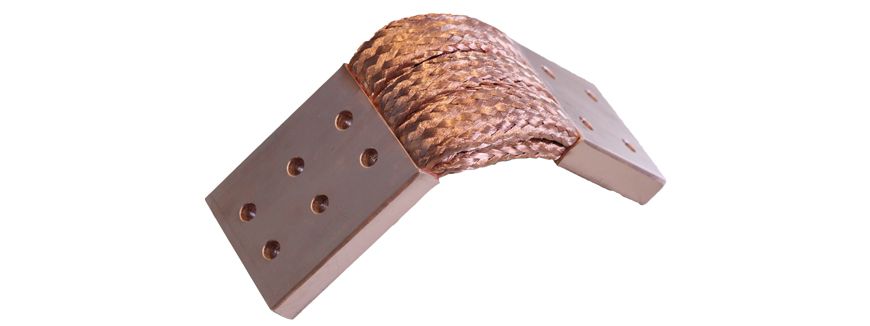

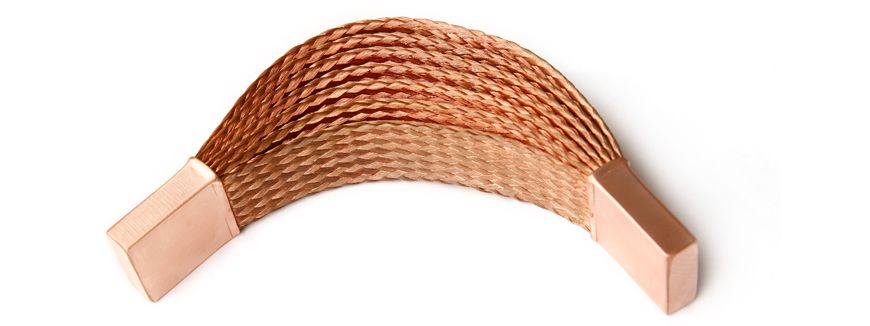

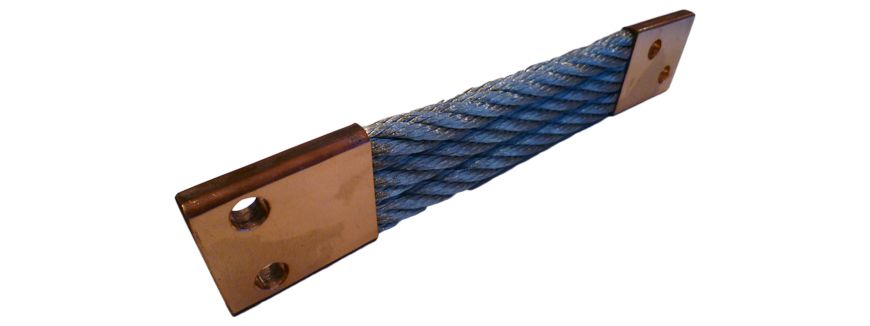

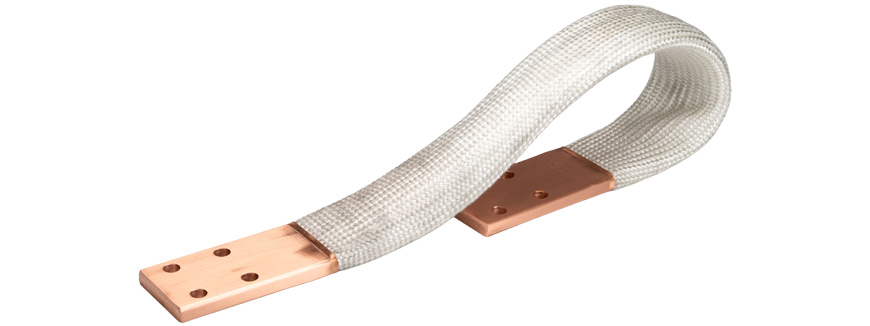

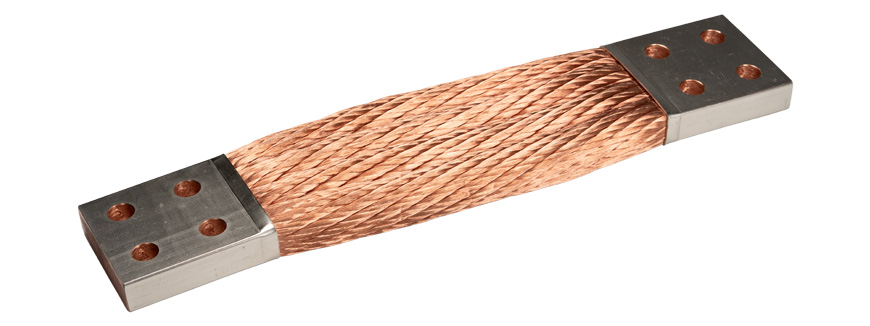

DIN 46 276 - Series GKKH
Design
The expansion connectors are made of copper or aluminum braids. The terminal contact ends, pressed copper tube under a precisely defined pressure.
Material
High-flexible bared or tinned copper braid, are made of copper or aluminum. Diameter of wire is preferably 0,1 to 0,5mm. Tubes or pipes for the contact ends are made of copper.
Drillings
The standard design without drillings. Upon request drillings would be according to DIN 43 673 or according to customer specification.
Type GKKS - Ordering examples for frequent dimensions

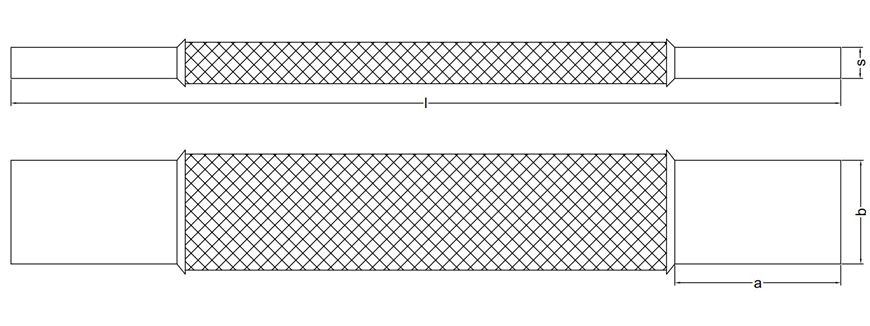

| Ordner no. | Cross section [mm2] | tMeasure a [mm] | tMeasure b [mm] | tMeasure l [mm] | tMeasure s [mm] |
|---|---|---|---|---|---|
| GKKH 20/16-140 | 16 | 20 | 20 | 140 | 3,5 |
| GKKH 25/25-150 | 25 | 25 | 25 | 150 | 3,5 |
| GKKH 30/35-160 | 35 | 30 | 30 | 160 | 4 |
| GKKH 30/50-160 | 50 | 30 | 30 | 160 | 5 |
| GKKH 40/50-180 | 50 | 40 | 40 | 180 | 4 |
| GKKH 50/70-200 | 70 | 50 | 50 | 200 | 5 |
| GKKH 50/100-200 | 100 | 50 | 50 | 200 | 5 |
| GKKH 40/120-180 | 120 | 40 | 40 | 180 | 7 |
| GKKH 50/120-200 | 120 | 50 | 50 | 200 | 7 |
| GKKH 50/200-200 | 200 | 50 | 50 | 200 | 8 |
| GKKH 60/200-270 | 200 | 60 | 60 | 270 | 7 |
| GKKH 50/280-250 | 280 | 50 | 50 | 250 | 9 |
| GKKH 50/280-270 | 280 | 50 | 50 | 270 | 8 |
| GKKH 50/350-250 | 350 | 50 | 50 | 250 | 10 |
| GKKH 60/350-270 | 350 | 60 | 60 | 270 | 8,5 |
| GKKH 120/500-450 | 500 | 120 | 120 | 450 | 8,5 |
| GKKH 80/600-400 | 600 | 80 | 80 | 400 | 12,5 |
| GKKH 120/600-450 | 600 | 120 | 120 | 450 | 9,5 |
| GKKH 120/800-450 | 800 | 120 | 120 | 450 | 11,5 |
| GKKH 120/1000-450 | 1000 | 120 | 120 | 450 | 14,5 |
| GKKH 120/1200-450 | 1200 | 120 | 120 | 450 | 16,5 |
| GKKH 120/1500-450 | 1500 | 120 | 120 | 450 | 20 |
| GKKH 140/1800-500 | 1800 | 120 | 140 | 500 | 19 |
| GKKH 120/2000-450 | 2000 | 120 | 120 | 450 | 25 |
| GKKH 180/2200-500 | 2200 | 120 | 180 | 500 | 21,5 |
| GKKH 200/2400-500 | 2400 | 120 | 200 | 500 | 20 |
