DIN 46 276 - Series GKAS
Design

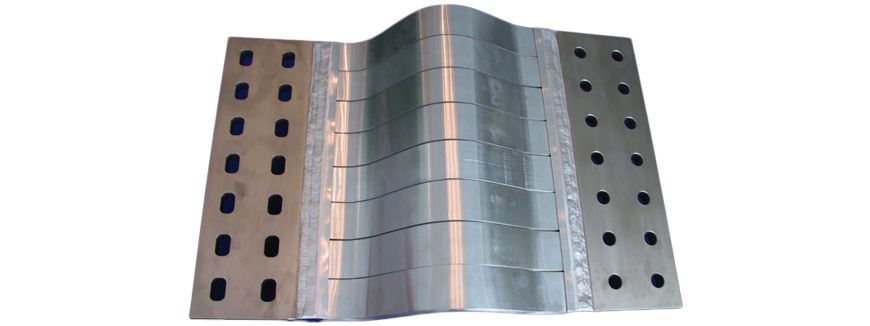

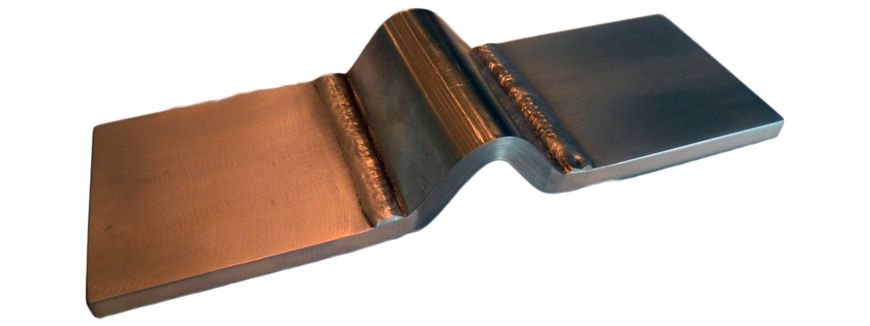

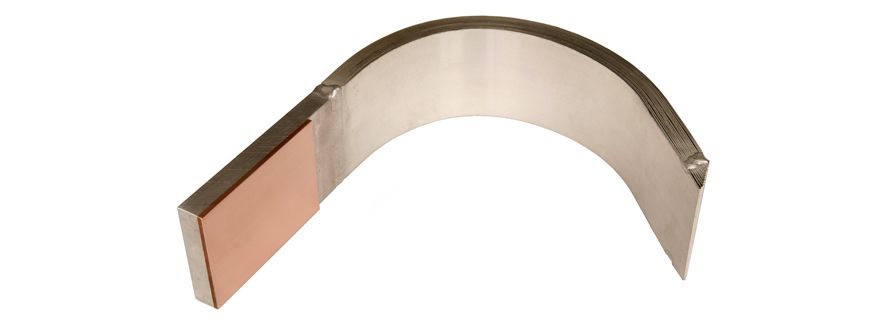

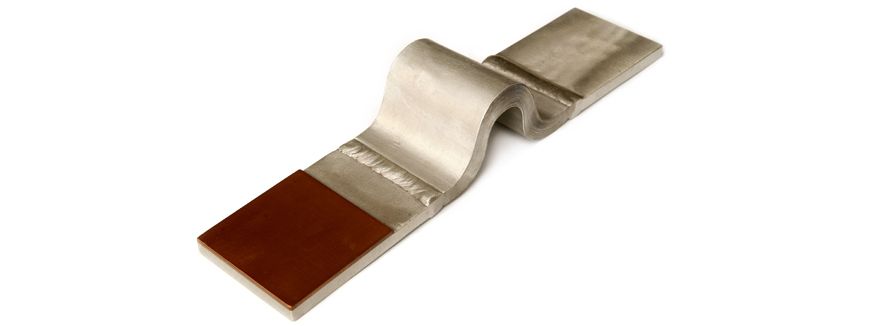

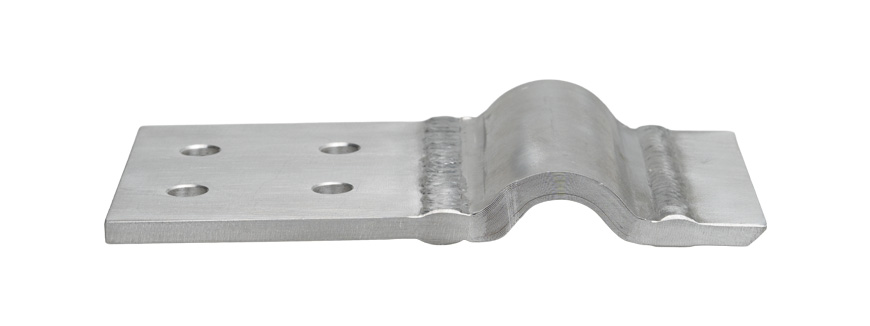

The expansion connectors are stacking build up by copper foils. The contact ends are made of flat aluminum. The flats are inert-gas welded to the aluminum foils.
Material
The connectors stacking: The aluminum foils are made of E-Al, 0,3 to 0,5mm thick.
The contact ends: The flat aluminum made of E-Al or high-conductivity pantal.
Drillings
The standard design without drillings. Upon request drillings would be according to DIN 43 673 or according to customer specification.
Type GKAS - Ordering examples for frequent dimensions
| Order no. | b [mm] | a [mm] | s [mm] | l [mm] | Weight [kg] |
|---|---|---|---|---|---|
| GKAS 40/5-230 | 40 | 40 | 5 | 230 | ca. 0,1 |
| GKAS 40/10-230 | 40 | 40 | 10 | 230 | ca. 0,3 |
| GKAS 50/5-280 | 50 | 50 | 5 | 280 | ca. 0,2 |
| GKAS 50/5-300 | 50 | 80 | 5 | 300 | ca. 0,2 |
| GKAS 50/10-280 | 50 | 50 | 10 | 280 | ca. 0,4 |
| GKAS 50/10-300 | 50 | 80 | 10 | 300 | ca. 0,5 |
| GKAS 60/5-300 | 60 | 80 | 5 | 300 | ca. 0,3 |
| GKAS 60/10-280 | 60 | 60 | 10 | 280 | ca. 0,5 |
| GKAS 60/10-300 | 60 | 80 | 10 | 300 | ca. 0,5 |
| GKAS 80/10-300 | 80 | 80 | 10 | 300 | ca. 0,7 |
| GKAS 80/15-300 | 80 | 80 | 15 | 300 | ca. 1,1 |
| GKAS 100/10-320 | 100 | 80 | 10 | 320 | ca. 1,0 |
| GKAS 100/15-320 | 100 | 80 | 15 | 320 | ca. 1,4 |
| GKAS 100/20-320 | 100 | 80 | 20 | 320 | ca. 1,9 |
| GKAS 120/20-320 | 120 | 80 | 20 | 320 | ca. 2,3 |
