DIN 46 276 - Series GKKS
Design

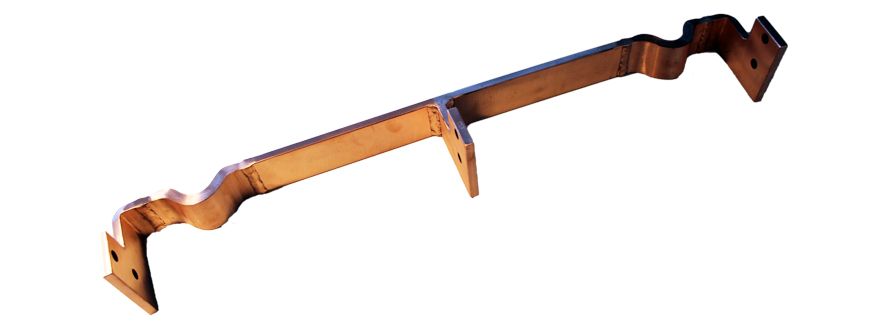

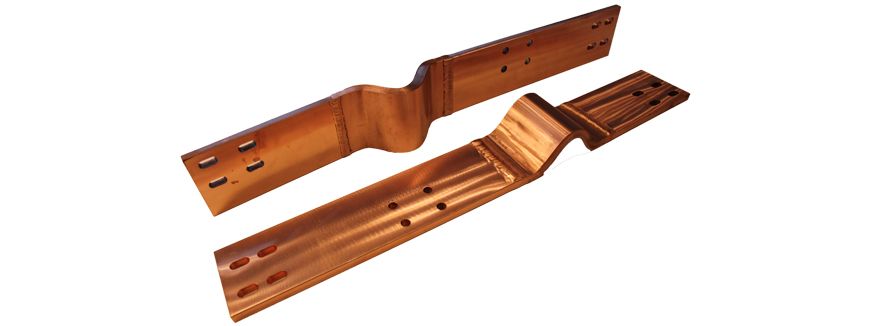

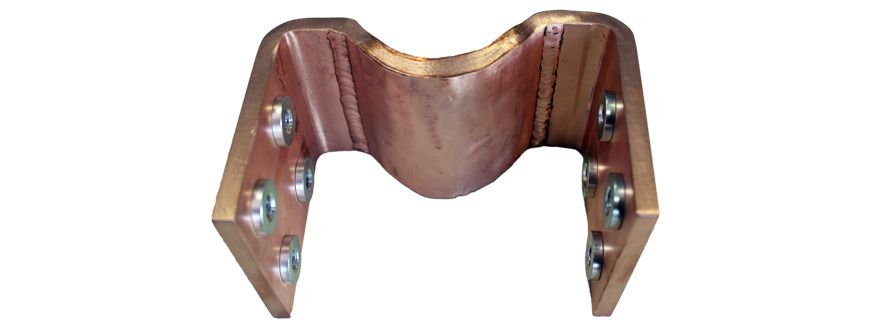

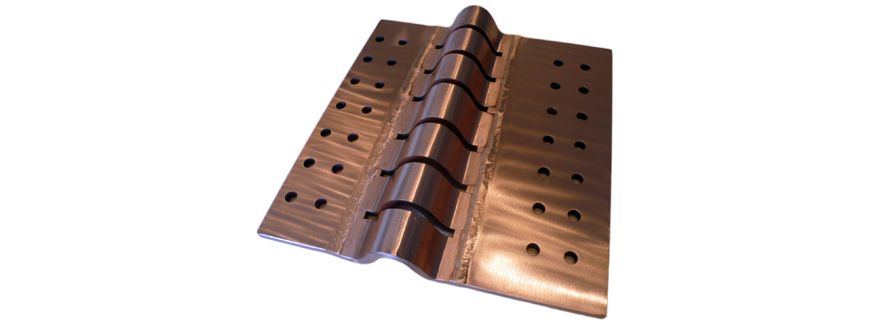

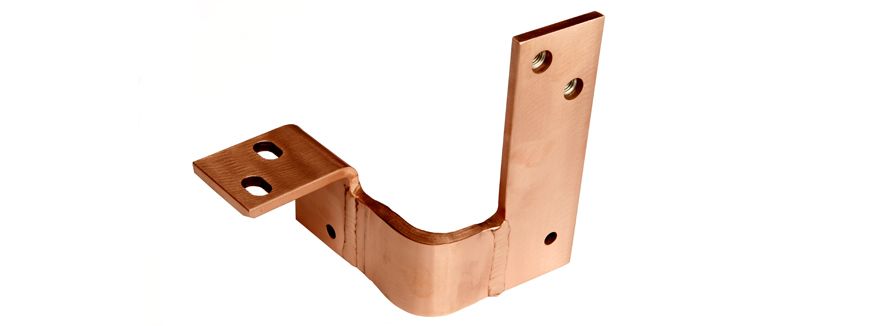

The expansion connectors are stacking build up by copper foils. The contact ends are made of flat copper. The flats are inert-gas welded to the copper foils.
Material
The connectors stacking: The copper foils are made of Cu-HCP, 0,1 to 0,3mm thick.
The contact ends: The flat copper made of Cu-ETP.
Drillings
The standard design without drillings. Upon request drillings would be according to DIN 43 673 or according to customer specification.

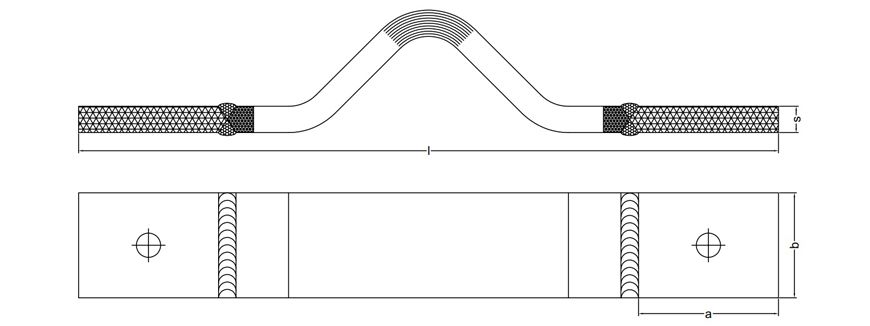

Type GKKS – Ordering examples for frequent dimensions
| Ordner no. | b [mm] | a [mm] | s [mm] | l [mm] | Weight [kg] |
|---|---|---|---|---|---|
| GKKS 40/5-230 | 40 | 40 | 5 | 230 | ca. 0,5 |
| GKKS 40/40-230 | 40 | 40 | 10 | 230 | ca. 0,9 |
| GKKS 50/5-280 | 50 | 50 | 5 | 280 | ca. 0,7 |
| GKKS 50/5-300 | 50 | 80 | 5 | 300 | ca. 0,7 |
| GKKS 50/10-280 | 50 | 50 | 10 | 280 | ca. 1,4 |
| GKKS 50/10-300 | 50 | 80 | 10 | 300 | ca. 1,5 |
| GKKS 60/5-300 | 60 | 80 | 5 | 300 | ca. 0,9 |
| GKKS 60/10-280 | 60 | 60 | 10 | 280 | ca. 1,7 |
| GKKS 60/10-300 | 60 | 80 | 10 | 300 | ca. 1,8 |
| GKKS 80/10-300 | 80 | 80 | 10 | 300 | ca. 2,4 |
| GKKS 80/15-300 | 80 | 80 | 15 | 300 | ca. 3,5 |
| GKKS 100/10-320 | 100 | 80 | 10 | 320 | ca. 3,1 |
| GKKS 100/15-320 | 100 | 80 | 15 | 320 | ca. 4,7 |
| GKKS 100/20-320 | 100 | 80 | 20 | 320 | ca. 6,2 |
| GKKS 120/20-320 | 120 | 80 | 20 | 320 | ca. 7,5 |
